ALC5631Q

        ALC5631Q是瑞昱公司推出的一款高性能、強大的I2S音頻編碼解碼器。寬壓自適應電源以及低能耗的特點,使其廣泛應用于便攜式電子設備中,如:智能本、上網本。ALC5631Q有兩種封裝方式:ALC5631Q-GR、ALC5631Q-GRT

ALC5631Q的采購信息如下:




ALC5631Q的主要功能特性包括:

1、Digital-to-Analog Converter with 100dBA SNR and –90dB THD+N

2、Analog-to-Digital Converter with 93dBA SNR and –88dB THD+N

3Stereo BTL (Bridge-Tied Load) Class-D amplifier and with 650mW/Ch output power  (SPKVDD=3.6V, THD = 1%, 8Ω load)

4、Stereo headphone output and without DC blocking capacitors.  (With 45mW/Ch driving power, 3.3V, 16Ω load)

53 analog differential inputs and 1 stereo single-ended input

6Stereo differential analog microphone inputs with boost pre-amplifiers and low noise microphone bias

7Differential earpiece Amp output

8、Stereo single-end or one differential line output

9、Audio jack insert detection and microphone switch detection

10、Power management and enhanced power saving

11Support flexible digital 6 bands equalizer (EQ)

12Support digital spatial sound and pseudo stereo effect

13、Zero detection and soft volume for pop noise suppression

14、Inside PLL can receive wide range clock input

15、Support I2C Control Interface

16、24bit/8kHz ~ 192kHz I2S/PCM interface for stereo DAC

17、24bit/8kHz ~ 96kHz I2S/PCM interface for stereo ADC

18Support enhanced Auto Level Control (ALC) function for playback and record

19Support digital microphone interface

20QFN-48 (6mm x 6mm) package

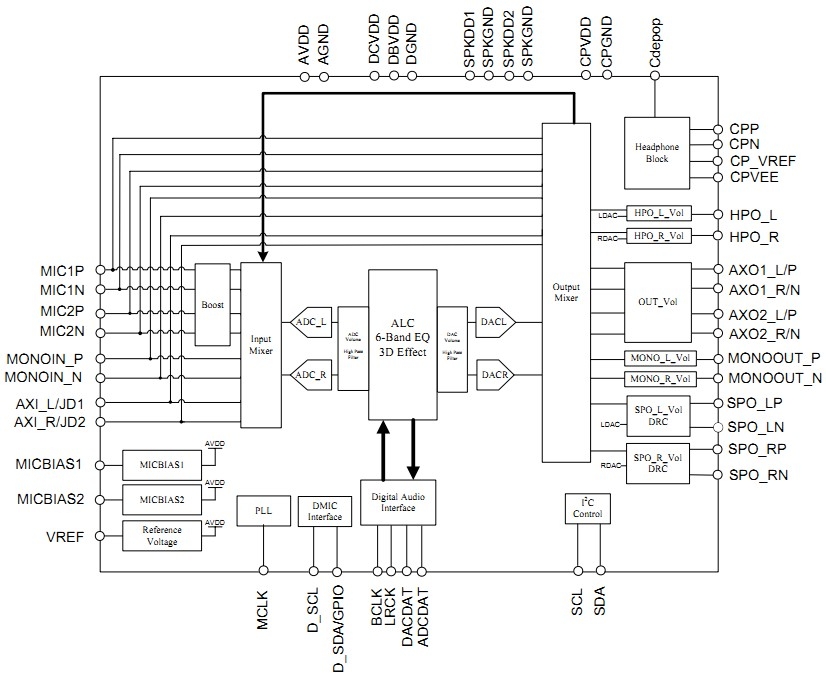

ALC5631Q的功能框圖如下:

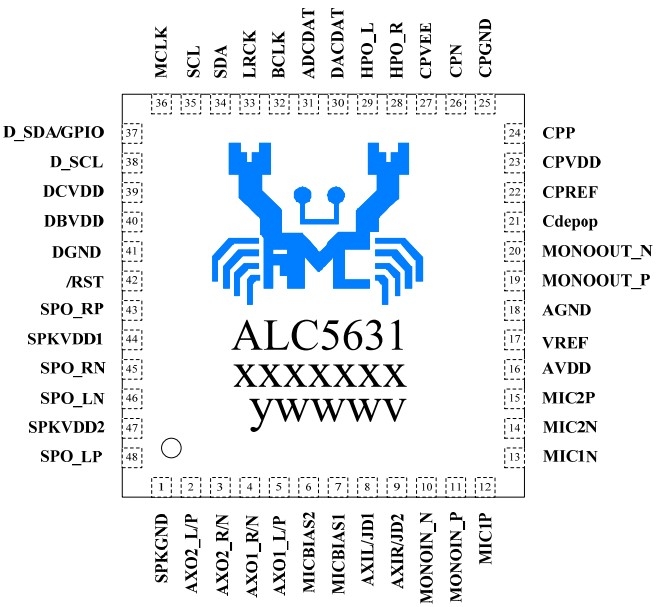

ALC5631Q的管腳圖如下:
