GL854G

        GL854GGenesys Logic公司推出的7端口HUB擴展芯片,兼容USB 2.0協議。GL854G實現了多個負載均衡的架構來確保每個下行通道都能達到較高的傳輸速率。GL854G 實現了多個HUB配置參數到內部的ROM中,使得應用顆ic時候不需要在加一顆外部的EEPROM,可以節約成本。GL854G可以提供一個12MHZ的頻率輸出,此時鐘可以用作其他應用的參考時鐘。不過在應用是要注意pcb布線。QQ:1762516767 18675554078,原裝現貨,歡迎交流。(更多詳情

GL854G的主要功能特性包括以下:

· Multiple Chip Package (MCP) architecture

Integrates two standard USB 4-port hub silicon dies into single chip

?       Supports 7 USB 2.0 compliant downstream ports

? Multiple Transaction Translator (MTT)

?       Provides dedicated TT control logics for each downstream port

?       Superior performance when multiple FS devices operate concurrently

? Compliant with USB specification Revision 2.0

?       Upstream port supports both high-speed (HS) and full-speed (FS) traffic

?       Downstream ports support HS, FS, and low-speed (LS) traffic

?       Backward compatible to USB specification Revision 1.1

?       Each downstream port supports status indicator, with automatic and manual modes

?       Conform to self power and bus power requirements

? Integrated USB transceiver

?       Compliant with USB electrical requirements

?       Ultralow power consumption

?       Improve output drivers with slew-rate control for EMI reduction

?       Internal power-fail detection for ESD recovery

? On-chip 8-bit micro-processor

?       Support customized PID, VID by reading external EEPROM

?       Support downstream port configuration by reading external EEPROM

? Smart power management features

Support individual / gang mode over-current detection for all downstream ports

?       Automatic switching between self-powered and bus-powered modes

? Lower BOM cost

?       Single external 12 MHz crystal / Oscillator clock input

?       On-chip 5V to 3.3V power regulator

?       Built-in upstream port 1.5KΩ pull-up and downstream port 15KΩ pull-down resistors

?       Support low-cost 24C02 EEPROM

? Features for hub compound applications

?       Support compound-device (non-removable in downstream ports) by I/O pin configuration

?       Provide 12MHz clock source for other USB device connected to the downstream ports

? Available package type: 64 pin LQFP package (7x7mm)

? Applications:

?       UMPC/MID, motherboard on-board applications

?       Consumer electronics built-in hub application

?       Monitor built-in hub

?       Embedded systems

?       Hub compound applications



GL854G的功能框圖如下:

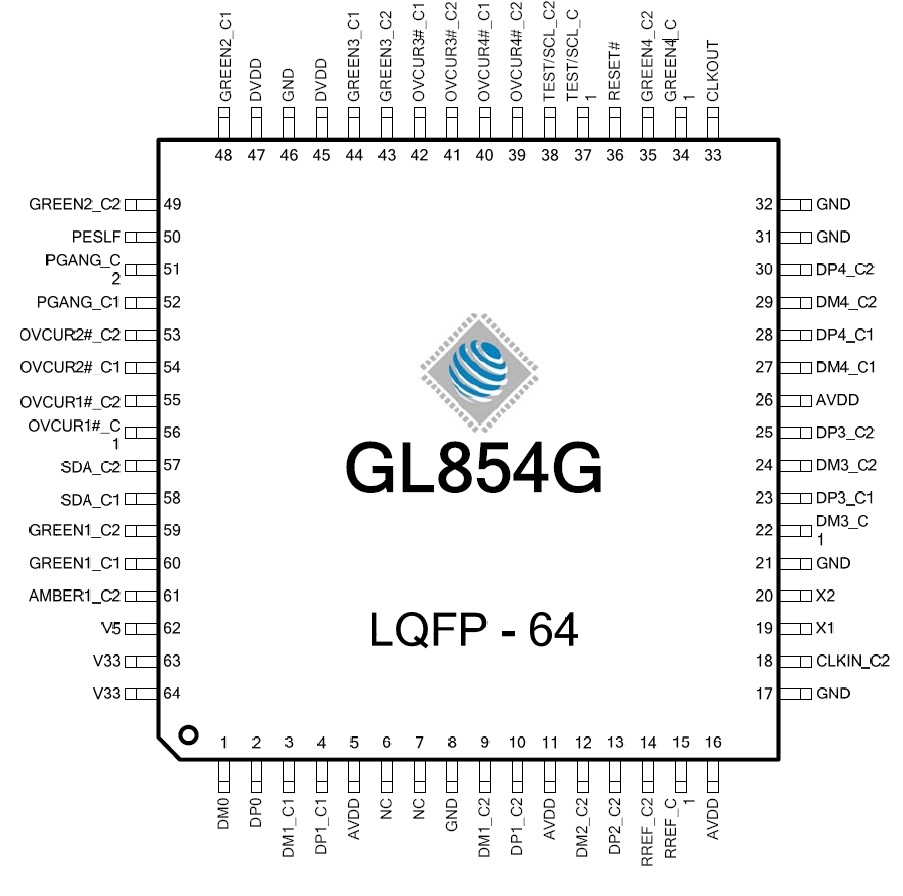

GL854G的管腳圖如下:

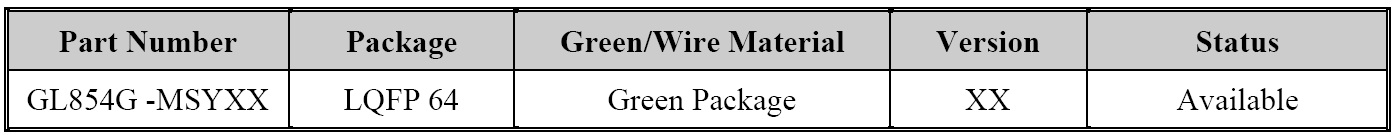

 GL854G的采購信息如下:


(以上信息由深圳市桑尼奇科技有限公司提供)
