IT66121FN

        IT66121FN是聯陽科技(ITE)推出的一款低功率單通道HDMI傳輸器,該芯片符合HDMI 1.3a, HDCP 1.2以及DVI1.0等標準,IT66121為數字電視提供了有效的解決方案,如DVD播放器、A/V接收器、機頂盒等,QQ:1762516767 18675554078,原裝現貨,歡迎交流。更多詳情

IT66121FN的采購信息如下:


IT66121FN的主要功能特性包括:

1Single channel HDMI transmitter

2Compliant with HDMI 1.3a, HDCP 1.2 and DVI 1.0 specifications

3Supporting pixel rates from 25MHz to 165MHz

4Various video input interface supporting digital video standards

5Support HDMI1.4 3D feature

6Bi-direction Color Space Conversion (CSC) between RGB and YCbCr color spaces with programmable coefficients.

7Digital audio input interface supporting

8Software programmable HDMI output current, enabling user to optimize the performance for fixed-cable systems or those with pre-defined cable length

9MCLK input is optional for audio operation. Users could opt to implement audio input interface with or without MCLK.

10Integrated pre-programmed HDCP keys

11Purely hardware HDCP engine increasing the robustness and security of HDCP operation

12Monitor detection through Hot Plug Detection and Receiver Termination Detection

13Embedded full-function pattern generator

14Intelligent, programmable power management

15 Embedded hardware controlled CEC PHY

16Ultra low power consumption, operation power is less than 70mw at 1080p@60Hz format.

1764-pin (9x9 mm) QFN package

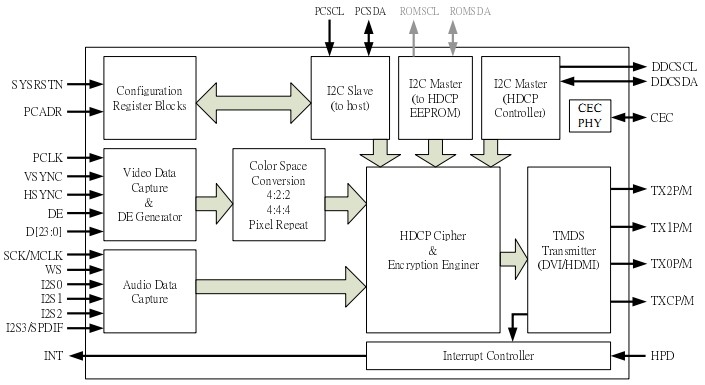

IT66121FN的功能框圖如下:

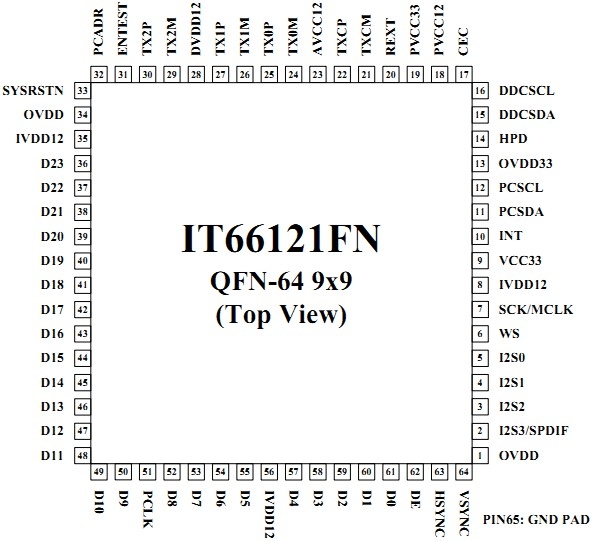

IT66121FN的管腳圖如下:


(以上信息由深圳桑尼奇科技有限公司提供)
